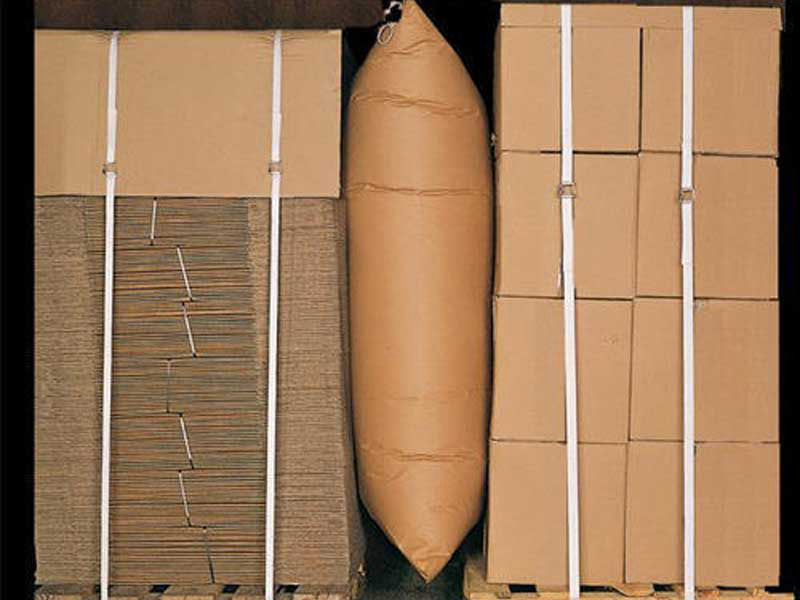

Dunnage Bags, also known as airbags are convenient, fast and cost effective alternative to secure and stabilize cargo in ISO sea-containers, closed railcars, trucks and (ocean going-) vessels. The use of dunnage bags can have a positive impact on road safety. According to the European Commission
Transportation Department "it has been estimated that up to 25% of accidents involving trucks can be attributable to inadequate cargo securing.
Dunnage bags are very easy to work with. They inflate rapidly with the use of an inflator using compressed air. Dunnage bags are very safe to use for both the shipping and receiving end of the transportation. Dunnage bags are waterproof. The cushions are easy to install and are inflated by compressed
air often by means of an outlet in the truck’s compressed air system or compressors.
The paper used on the outside of the bag is laminated on the inside with a woven polypropylene layer, which allows higher resistance to punctures and moisture. These inflatable dunnage air bags are designed for securing cargo in truck & containers.
Woven polypropylene bags are made from inside LDPE Liner and woven polypropylene outside. These inflatable dunnage air bags can be used in trucks, containers, railcars & ships.
PP Laminated bags are made from inside LDPE Liner and woven polypropylene coated with polyethylene outside.
Known as synthetic steel, manufactured from high tenacity polyester yams embedded in a polymer coating, composite strapping is available in a wide variety of widths and strength.
. Strength of up to 1800 daN/ 4050 1bf
. Non abrasive -will not damage products in transit
. Re-tensionable
| Size | Break Strength (kg) | System Strength (kg) | Coil (Mtr.) Length |
|---|---|---|---|
| 13 mm | 290 | 420 | 2200 |
| 16 mm | 420 | 670 | 1700 |
| 19 mm | 480 | 780 | 1200 |
| 25 mm | 680 | 1200 | 1000 |
| 32 mm | 1200 | 1900 | 600 |
. Joint efficiency of up to 90%
. Most consistent closure method in the industry
. Self Locking
. Manufacture from high quality steel wire.
.Available in different sizes and strengths.
. 16 mm
. 19 mm
. 25 mm
. 32 mm
